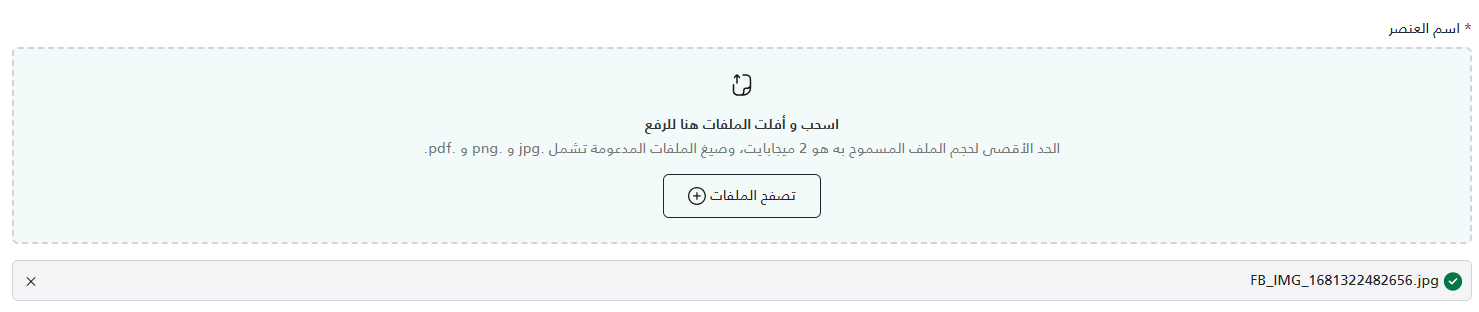

_FileUpload Component

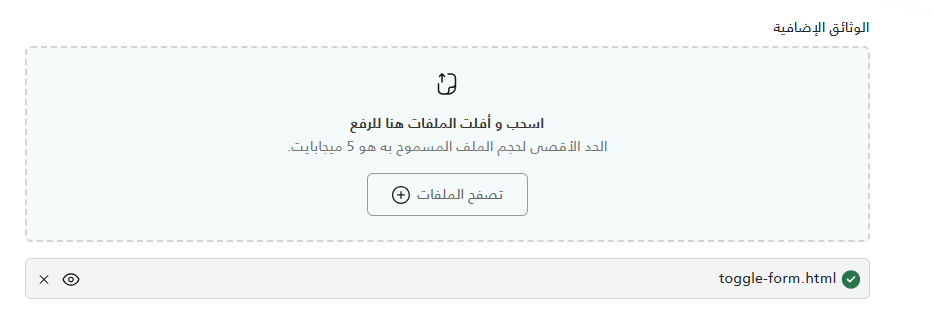

_FileUpload alt text

A reusable file upload component that supports drag-and-drop, client-side validation (file size, type, max count), and managing a list of uploaded files.

Usage​

1. Render the Component​

Use the partial tag to include the component in your Razor view.

<!-- Minimal usage -->
<partial name="UI/_FileUpload/_FileUpload"
         model='("Document Label", true, "my-uploader-id")' />

<!-- Full usage with constraints -->
<partial name="UI/_FileUpload/_FileUpload"
         model='("Profile Picture", true, "avatar-uploader", 1, new string[] { "image/png", "image/jpeg" })' />

<!-- Full usage with all parameters -->
<partial name="UI/_FileUpload/_FileUpload" model='(@Label, @Required, @Id, @MaxFiles, @AllowedFileTypes, @MaxFileSize)' />

2. Handle Files via JavaScript​

The component registers itself in a global object window.fileUploads. You can access the specific instance using the Id you provided.

document.getElementById('myForm').addEventListener('submit', function(e) {
    e.preventDefault();

    // Access the uploader instance by ID
    var uploader = window.fileUploads["my-uploader-id"];

    // Get the array of native File objects
    var files = uploader ? uploader.getFiles() : [];

    // process files (e.g., add to FormData)
    var formData = new FormData();
    files.forEach(file => {
        formData.append("Documents", file);
    });

    // submit formData...
});

Properties​

The model is a ValueTuple requiring specific order.

PositionNameTypeDescriptionExample / Note
1LabelstringThe text label displayed above the upload area."Personal Photo"
2RequiredboolToggles the required asterisk (*) and hidden input validation.true or false
3IdstringUnique identifier for this uploader instance. Used for JS access."user-docs-1"
4MaxFilesint?(Optional) Maximum number of files allowed.1 (single mode) or 5 (limit)
5AllowedFileTypesstring[](Optional) Array of allowed MIME types. Null allows all.new[] &#123; "application/pdf" &#125;
6MaxFileSizedouble(Optional) Maximum file size in MB. Default is 5 MB.10 or 2.5
