ChipSelect

A searchable multi-select dropdown component for ASP.NET Core Razor that displays selections as dismissible chips and synchronizes with hidden form inputs for standard form submission.

UI Preview​

StatePreview
Selected (Chips)Selected Chips

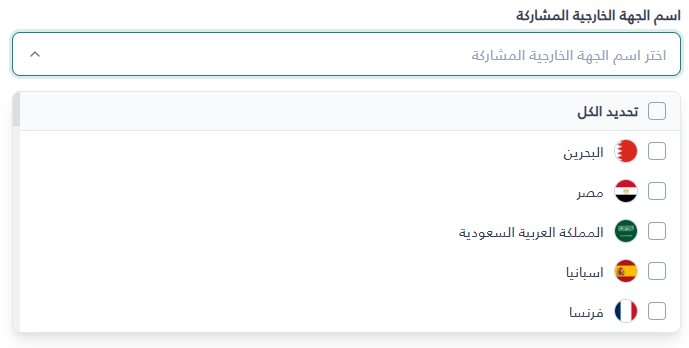

Dropdown OpenDropdown Open

Render the partial view passing an anonymous object or model dictionary:

@await Html.PartialAsync("UI/_ChipSelect", new {
    id = "lawyersSelect",
    name = "AssignedLawyerIds",
    label = "المحامون المكلفون",
    placeholder = "اختر المحامين...",
    items = new[] {
        new { id = 1, text = "أحمد محمود", secondaryText = "قضايا عمالية", image = "/img/user1.png" },
        new { id = 2, text = "سارة علي", secondaryText = "قضايا تجارية", image = "/img/user2.png" },
        new { id = 3, text = "خالد حسن", secondaryText = "قضايا جنائية" }
    },
    selectedValues = new[] { 1, 2 }
})

Props​

Razor Helper Props (Model)​

PropTypeDefaultDescription
idstringAuto-generated GUIDContainer element ID. Required for JavaScript instance lookup.
namestring"SelectedIds"Form field name used for generated hidden inputs.
labelstring""Top label displayed above the control.
placeholderstring"اختر عناصر..."Text displayed in the control when empty.
searchPlaceholderstring"بحث..."Watermark text inside the search input.
searchAriaLabelstring""Accessibility label for the search input.
selectAllTextstring"تحديد الكل"Display text for the Select All dropdown option.
showImagesbooltrueShow or hide circular avatar/icons in chips and options.
allowSearch / searchablebooltrueShow or hide the search input.
allowSelectAllbooltrueShow or hide the Select All option.
allowClear / clearablebooltrueShow or hide the Clear All (×) button inside the control.
closeOnSelectboolfalseClose dropdown immediately upon selecting/unselecting.
maxSelectionsint?nullMaximum allowed selections (null = unlimited).
itemsIEnumerable[]List of items: { id, text, secondaryText?, image? }.
selectedValuesIEnumerable[]Initial selected IDs (int or string).

JavaScript-only Options​

These options are available in instance.config or when instantiating via JS:

OptionTypeDefaultDescription
multiplebooleantrueSet to false for single-select mode.
onChangeFunctionnullCallback: (selectedItems, selectedValues) => void.
normalizeArabicbooleantrueNormalizes Arabic diacritics and Alef/Yaa variants in search.
noResultsTextstring"لا توجد نتائج"Empty state text when search yields no matches.

Common Examples​

1. Basic Multi-Select​

@await Html.PartialAsync("UI/_ChipSelect", new {
    id = "caseCategories",
    name = "CategoryIds",
    label = "التصنيفات",
    items = ViewBag.Categories
})

2. Pre-selected Values​

@await Html.PartialAsync("UI/_ChipSelect", new {
    id = "tagsSelect",
    name = "TagIds",
    items = Model.AllTags,
    selectedValues = new[] { "tag-1", "tag-3" }
})

3. Search Disabled​

@await Html.PartialAsync("UI/_ChipSelect", new {
    id = "prioritySelect",
    name = "Priorities",
    allowSearch = false,
    items = Model.Priorities
})

4. Custom Actions & Auto-Close​

@await Html.PartialAsync("UI/_ChipSelect", new {
    id = "officesSelect",
    name = "OfficeIds",
    allowSelectAll = false,
    allowClear = true,
    closeOnSelect = true,
    items = Model.Offices
})

5. Maximum Selections​

@await Html.PartialAsync("UI/_ChipSelect", new {
    id = "committeeSelect",
    name = "MemberIds",
    label = "أعضاء اللجنة (حد أقصى 3)",
    maxSelections = 3,
    items = Model.Users
})

6. Single-Select (via JavaScript)​

const cs = window.ChipSelect.getInstance('userSelect');
cs.config.multiple = false;
cs.config.closeOnSelect = true;

Built-in Functions​

Get an instance using window.ChipSelect.getInstance(id) or window.getChipSelectInstance(id):

const cs = window.ChipSelect.getInstance('lawyersSelect');

getSelectedValues()​

Returns an array of selected ID strings.

  • Returns: string[]
const ids = cs.getSelectedValues(); // ["1", "2"]

getSelectedItems()​

Returns an array of full item objects that are currently selected.

  • Returns: object[]
const items = cs.getSelectedItems(); // [{ id: 1, text: "أحمد محمود", ... }]

setSelectedValues(values)​

Replaces current selections with the provided ID list.

  • Parameters: values: Array<string|number>
  • Returns: void
cs.setSelectedValues([2, 3]);

select(id)​

Selects an individual item by its ID.

  • Parameters: id: string|number
  • Returns: void
cs.select(3);

unselect(id)​

Unselects an individual item by its ID.

  • Parameters: id: string|number
  • Returns: void
cs.unselect(1);

selectAll()​

Selects all items currently loaded into the component.

  • Returns: void
cs.selectAll();

clear() / deselectAll()​

Clears all selected values.

  • Returns: void
cs.clear();

setItems(items, options)​

Replaces the component items list (or merges if options.merge = true).

  • Parameters: items: object[], options?: { merge?: boolean }
  • Returns: void
cs.setItems([
    { id: 10, text: "جديد 1" },
    { id: 11, text: "جديد 2" }
]);

addItems(items)​

Appends new items to the existing item list.

  • Parameters: items: object[]
  • Returns: void
cs.addItems([{ id: 12, text: "مضاف جديد" }]);

destroy()​

Cleans up event listeners, timers, and DOM elements.

  • Returns: void
cs.destroy();

Quick Reference​

@* Razor *@
@await Html.PartialAsync("UI/_ChipSelect", new {
    id = "mySelect",
    name = "SelectedIds",
    items = Model.Options,
    selectedValues = Model.SelectedIds
})
// Access Instance
const cs = window.ChipSelect.getInstance('mySelect');

// Read Values
const values = cs.getSelectedValues(); // ['1', '2']
const items  = cs.getSelectedItems();  // [{ id: 1, text: '...' }]

// Global Quick Helpers
const values = window.getChipSelectValues('mySelect');
const items  = window.getChipSelect('mySelect');

// Modify Selections
cs.setSelectedValues([3, 4]);
cs.select(5);
cs.unselect(3);
cs.clear();

// Update Data (AJAX)
cs.setItems([{ id: 20, text: 'عنصر جديد' }]);

// Listen to Changes
cs.config.onChange = (selectedItems, selectedValues) => {
    console.log('Changed:', selectedValues);
};

// Teardown
cs.destroy();
