AutoComplete Component Documentation

Enterprise-grade, accessible, flexible AutoComplete & Search Select component for ASP.NET Core MVC. Fully self-contained single-file Razor Partial View (_AutoComplete.cshtml).

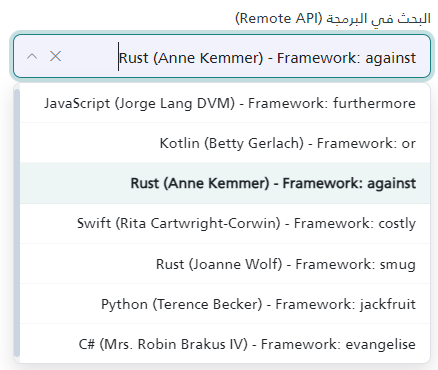

UI Preview​

StatePreview
Defaultalt text
Selected Valuealt text

1. Setup Requirements​

To use _AutoComplete.cshtml, ensure your project includes:

  1. Bootstrap 5 CSS & JS (Required for dropdown styling, responsive layout, and tooltips).
  2. Bootstrap Icons (bi) (Required for action buttons: clear bi-x-lg, caret bi-chevron-down, prompt bi-info-circle).
  3. Partial Location: Store the partial view in Views/Shared/UI/_AutoComplete.cshtml.

[!NOTE] The component automatically injects its required CSS styles and JS engine only once per HTTP request via ASP.NET Core Context.Items. No external .js or .css files need to be referenced in your _Layout.cshtml.

2. Quick Usage Examples​

Local Data Source Example​

<partial name="UI/_AutoComplete" model='new {
    id          = "lawyerSelect",
    name        = "LawyerId",
    label       = "المحامي المسؤول",
    required    = true,
    placeholder = "اختر المحامي...",
    items = new[] {
        new { value = "1", label = "أحمد محمود الإبراهيم" },
        new { value = "2", label = "خالد عبدالله الفهد" },
        new { value = "3", label = "سارة محمد العتيبي" }
    }
}' />

Pre-Selected Initial Value Example​

<partial name="UI/_AutoComplete" model='new {
    id            = "statusSelect",
    name          = "StatusId",
    label         = "حالة الملف",
    selectedValue = "101",
    selectedText  = "قضية قيد التداول",
    items = new[] {
        new { value = "101", label = "قضية قيد التداول" },
        new { value = "102", label = "مغلقة" }
    }
}' />

3. Remote Search — Step-by-Step Setup Guide​

[!IMPORTANT] Remote mode works in 2 steps: (A) add the Razor partial in the View with remoteUrl pointing to your controller action, (B) create an [HttpGet] action in your controller that accepts q and returns JSON.

Step 1 — Add Partial in the Razor View​

<partial name="UI/_AutoComplete" model='new {

    id                  = "caseSearch",
    // ^ Unique ID. Used to access the JS instance via AutoComplete.getInstance("caseSearch").
    // Also becomes the hidden input ID. Must be unique per page.

    name                = "CaseId",
    // ^ The form field name. ASP.NET Core binds this on POST.
    // Example: public IActionResult Save(string CaseId) { ... }

    label               = "البحث في القضايا",
    // ^ Text label displayed above the input. Leave empty to hide label.

    required            = true,
    // ^ If true: shows red asterisk *, adds aria-required, blocks form submit if empty.

    placeholder         = "اكتب رقم القضية أو اسم الطرف...",
    // ^ Placeholder text inside the empty input field.

    remoteUrl           = "/Cases/Search",
    // ^ Your controller endpoint path. The component will call:
    //   GET /Cases/Search?q={typedText}
    // Set this and the component automatically enables remote search mode.

    minimumSearchLength = 2,
    // ^ User must type at least 2 characters before a search fires.
    // Set to 0 to load default results immediately on focus.

    debounceDelay       = 400,
    // ^ Milliseconds to wait after user stops typing before sending request.
    // For remote mode, the component automatically uses 400ms if you don't set this.
    // For local mode the default is 250ms. Override explicitly to use any custom value.

    searchPrompt        = "يرجى إدخال حرفين على الأقل...",
    // ^ Message shown in dropdown when typed length < minimumSearchLength.
    // Only visible when minimumSearchLength > 0.

    allowClear          = true,
    // ^ Shows an × button inside the input when a value is selected.
    // Clicking it clears the selection AND immediately re-runs search with empty
    // query — so the dropdown re-opens with default results instead of staying empty.

    cacheResults        = true,
    // ^ Caches server responses by query string in browser memory.
    // Same query won't re-fire until cache cleared or page reloads.
    // Set to false during development to always get fresh results.

    maxVisibleItems     = 10,
    // ^ Limits how many items appear in the dropdown list at once.
    // Filtering/slicing happens client-side after receiving server response.

    showTooltip         = true
    // ^ Shows Bootstrap tooltip on item hover with the item label as content.
    // Useful when label text is long and truncated in the dropdown.

    // NOTE — Refocus behavior:
    // If an item is already selected and the user clicks back into the input,
    // the component re-opens the dropdown instantly using cached results.
    // It does NOT fire a new API request in this case.

}' />

Step 2 — Create the Controller Action​

Create an [HttpGet] action in your controller. The component always sends the search text as the q query parameter: GET /Cases/Search?q=&#123;typedText&#125;

Basic Controller Example (Database)​

// Controller: CasesController.cs

[HttpGet]
public async Task<IActionResult> Search(string q)
{
    // q = whatever the user typed. Empty string "" means no filter (show defaults).

    var results = await _db.Cases
        .Where(c =>
            string.IsNullOrEmpty(q) ||         // empty q = return all/default
            c.CaseNumber.Contains(q) ||        // match by case number
            c.Title.Contains(q)                // match by title
        )
        .Take(20)                              // always limit results for performance
        .Select(c => new {
            value   = c.Id.ToString(),         // REQUIRED: value stored in hidden input on select
            label   = c.CaseNumber + " - " + c.Title,  // REQUIRED: text shown in dropdown + input
            tooltip = c.SubjectSummary         // OPTIONAL: hover tooltip content
        })
        .ToListAsync();

    return Json(results);
    // Response MUST be a JSON array: [{ value, label }, ...]
}

Controller Example (External API Proxy)​

Use this pattern when data comes from an external REST API (avoids browser CORS issues):

[HttpGet]
public async Task<IActionResult> Search(string q)
{
    const string apiUrl = "https://external-api.example.com/data";

    // local helper: safely read a JSON property as string
    string str(System.Text.Json.JsonElement el, string key)
        => el.TryGetProperty(key, out var p) ? p.ToString() : "";

    try
    {
        using var client = new System.Net.Http.HttpClient { Timeout = System.TimeSpan.FromSeconds(5) };

        var response = await client.GetAsync(apiUrl);
        if (!response.IsSuccessStatusCode) return Json(Array.Empty<object>());

        var json  = await response.Content.ReadAsStringAsync();
        var items = System.Text.Json.JsonDocument.Parse(json).RootElement.EnumerateArray();

        var result = items
            .Select(item => new
            {
                value = str(item, "id"),
                label = str(item, "name") is { Length: > 0 } n ? n : str(item, "title")
            })
            .Where(x => string.IsNullOrWhiteSpace(q)
                     || x.label.Contains(q, System.StringComparison.OrdinalIgnoreCase))
            .ToList();

        return Json(result);
    }
    catch
    {
        return Json(Array.Empty<object>()); // return empty on error — don't crash
    }
}

[!NOTE] The JSON response must be an array of objects containing at minimum value and label keys. The component also accepts: id as alternative for value, and name/title/text as alternatives for label.

Step 3 — Verify It Works​

  1. Run the app and open the page containing the AutoComplete.
  2. Open Browser DevTools → Network tab.
  3. Click the AutoComplete input or type something.
  4. Look for a GET request to /Cases/Search?q=yourText.
  5. Confirm response is a JSON array: [&#123;"value":"1","label":"..."&#125;].
  6. Items should appear in dropdown.

[!TIP] If dropdown shows empty/no results: check the Network tab response body. If [] is returned, your filter is too strict or the q parameter isn't matching. If the request isn't being made, check remoteUrl path matches your controller route exactly.

4. Configuration Properties Reference​

PropertyTypeStatusDefaultDescription
idstringOptional (Recommended)ac_ + 8 GUID charsUnique HTML ID. Used for JS instance access.
namestringOptionalSame as idForm POST field name for hidden input.
labelstringOptional""Label text above input.
requiredboolOptionalfalseAsterisk + validation on form submit.
placeholderstringOptional"ابحث هنا..."Input placeholder text.
selectedValuestringOptional""Pre-selected item value on load.
selectedTextstringOptional""Pre-selected item display text on load.
items / optionsIEnumerableLocal Mode[]Static data array.
remoteUrlstringRemote Mode""GET ?q= endpoint. Enables remote mode.
enableRemoteSearchboolOptionalfalseForce remote mode without remoteUrl.
minimumSearchLengthintOptional0Min chars before search fires.
debounceDelayintOptional250 local / 400 remoteMs wait after typing stops. Remote auto-bumps to 400 unless overridden.
maxVisibleItemsintOptional100Max dropdown items shown.
dropdownMaxHeightstringOptional"280px"CSS max-height of dropdown.
allowClearboolOptionaltrueShow × button. On click: clears selection and re-runs empty search so dropdown shows defaults.
disabledboolOptionalfalseDisable input.
readonlyboolOptionalfalseRead-only input.
autoFocusboolOptionalfalseFocus input on page load.
showTooltipboolOptionalfalseHover tooltip on items.
cacheResultsboolOptionaltrueCache AJAX responses in memory.
searchCaseSensitiveboolOptionalfalseCase-sensitive local filter.
searchModestringOptional"contains"contains / startsWith / exact.
searchPromptstringOptional"عليك كتابة نص..."Prompt when query too short.

5. Item Object Schema​

Items returned by the controller (or passed in items) are normalized automatically:

PropertyAlternative KeysTypeStatusDescription
valueValue, id, Idstring / intRequiredStored in hidden input on select.
labelLabel, name, Name, title, Title, text, TextstringRequiredDisplayed in dropdown and input.
tooltiptitle, TitlestringOptionalHover tooltip content.
disabledDisabledboolOptionalGreys out + prevents selection.

6. JavaScript API & Helper Functions​

Built-in Helper Function to Get Selected Value​

getAutoComplete(id) is a built-in global helper function available on window. It returns &#123; value, label &#125; of the selected item, or null if nothing is selected.

// Global built-in helper function
const selected = getAutoComplete("caseSearch");

if (selected) {
    console.log("Selected Value:", selected.value); // e.g. "101"
    console.log("Selected Label:", selected.label); // e.g. "قضية قيد التداول"
} else {
    console.log("No item selected");
}

Instance Methods for Reading Values​

You can also retrieve the instance using AutoComplete.getInstance(id) and call getter methods directly:

const ac = AutoComplete.getInstance("caseSearch");

// 1. Get raw value string (hidden input value)
const val = ac.getValue();          // returns "101" or ""

// 2. Get simplified selected object { value, label }
const item = ac.getSelectedItem();  // returns { value: "101", label: "..." } or null

// 3. Get full raw item object (including custom properties)
const fullItem = ac.getItem();      // returns { value: "101", label: "...", tooltip: "..." } or null

ac.setValue("5", "Cairo"); // programmatically select ac.clear(); // clear selection (fires default search) ac.setData([...]); // replace local dataset ac.reload(); // re-run last remote query ac.clearCache(); // clear cached responses

ac.enable(); ac.disable(); ac.open(); ac.close(); ac.focus(); ac.blur(); ac.validate(); // → bool, marks invalid if required + empty ac.destroy(); // cleanup all events + instance


### Events
```javascript
// Via callbacks
initAutoComplete('ac-container-caseSearch', &#123;
    onSelect: (&#123; item &#125;)        => console.log(item),
    onChange: (&#123; value, item &#125;) => console.log(value),
    onClear:  ()                => console.log('cleared'),
    onError:  (&#123; error &#125;)       => console.warn(error)
&#125;);

// Via DOM events
document.getElementById('ac-container-caseSearch')
    .addEventListener('autocomplete:select', e => console.log(e.detail.item));

7. Form POST & Model Binding​

The component renders a hidden input <input type="hidden" name="{name}" value="{selectedValue}" />.

On form submit, ASP.NET Core auto-binds by field name:

[HttpPost]
public IActionResult Save(string CaseId, string LawyerId)
&#123;
    // CaseId / LawyerId = the selected values from AutoComplete inputs
    return RedirectToAction("Index");
&#125;

8. Keyboard Shortcuts​

KeyAction
↓ / ↑Open dropdown / navigate items
EnterSelect highlighted item
TabCommit highlighted item + move focus
EscapeClose dropdown
Home / EndJump to first / last item
